4D BIM Construction Sequencing Model

Time-linked 3D BIM model for MRT tunnel construction — animating the full construction sequence from TBM launch shaft excavation through tunnel boring drive operations, enabling programme visualisation, schedule risk identification, and stakeholder communication.
Beyond+

What is 4D BIM ?

3D

Geometry Model
Programmed Schedule

4D

Time-linked simulation of construction activities — every model element linked to a programme task, enabling visual playback of the build sequence.

Project Details

Project Reference
MRT Tunnel — 4D BIM Construction Sequencing Model
Client / Owner
Land Transport Authority (LTA), Singapore
Project Type
MRT Tunnel Construction — TBM Launch Shaft & Drive
Main Contractor
Confidential
BIM Dimension
4D — Time-linked Construction Sequencing
Key Activities
Launch Shaft RC Works · TSA Shaft Wall · TBM 2nd Drive
4D Software
Autodesk Navisworks Manage — TimeLiner Module
Programme Link
Gantt Programme (P6 / MS Project) linked to BIM model
Project Status
Completed — FM Model Handed Over

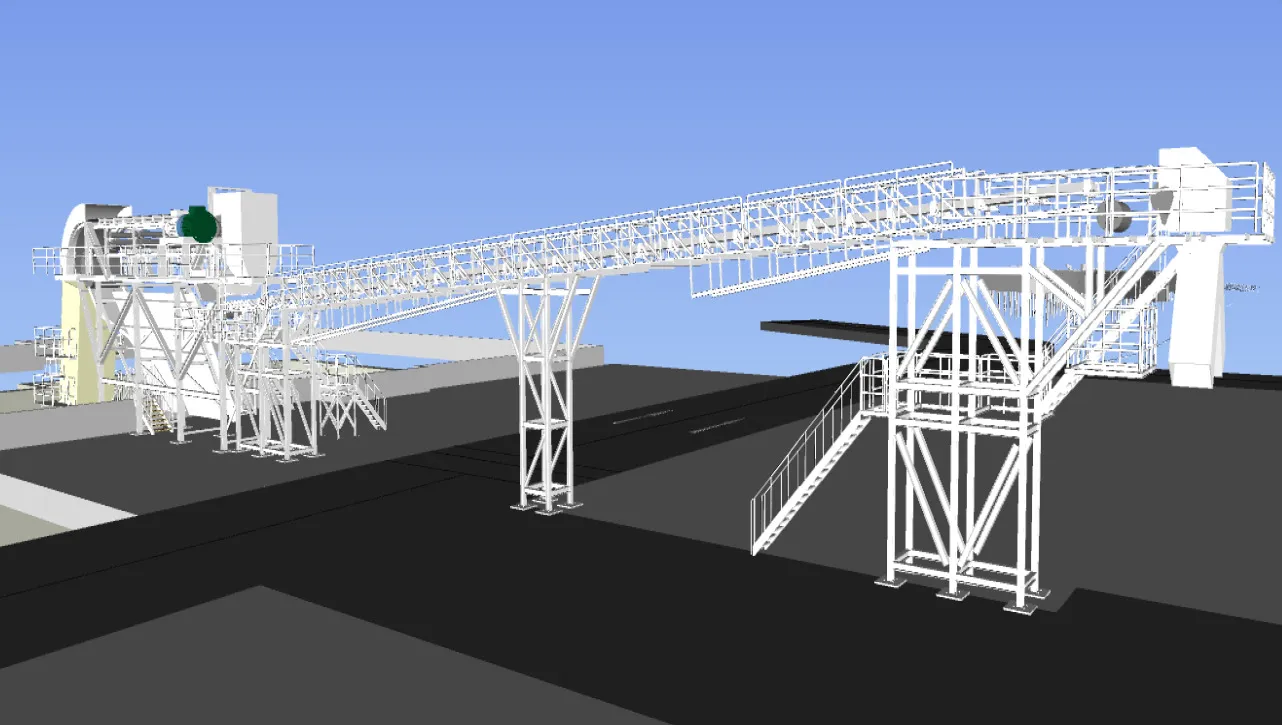

Shaft rebar BIM model showing a conveyor system with support structures and machinery under a blue sky.
Fig. 1

4D Construction Sequence — Key Phases

Phase 1
Launch Shaft Preparation
Excavation, sheet piling, and temporary strutting arrangement (TSA) installation
Phase 2
Launch Shaft RC Works
Reinforced concrete shaft base, walls, and structural lining construction
Phase 3
TSA Shaft Wall Construction
Middle waler installation and east shaft wall construction to TSA specification
Phase 4
TBM Assembly & Launch
TBM component lowering, assembly in launch shaft, and ground-breaking launch
Phase 5
TBM 2nd Drive
TBM boring from FB Shaft to CR117 — 1,438 m continuous drive with segment ring erection
Phase 6
Tail Grouting & Handover
Annular grouting, convergence monitoring, and tunnel as-built verification

Scope Of Work

4D BIM model setup — linking Revit/Navisworks 3D lements to construction programme tasks in Navisworks TimeLiner
Construction programme import — P6 / MS Project Gantt chart tasks imported and mapped to BIM model objects
TBM launch shaft sequence animation — excavation, RC works, and TSA shaft wall construction phases visualised
TBM 2nd Drive simulation — 1,438 m boring sequence from FB Shaft to CR117 animated with segment ring appearance
Colour-coded task state display: Not Started (grey) / In Progress (green) / Completed (yellow) / Early/Late (red)
Charts on a whiteboard, including a bar graph and pie charts, possibly related to 4D BIM construction sequencing.

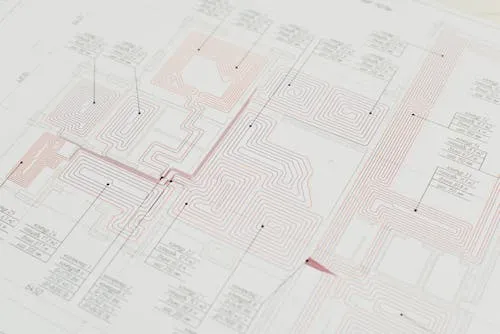

4D BIM construction sequencing model showing a complex, detailed architectural plan with annotations.
Programme logic review — clash between construction tasks and physical sequence identified through 4D visualisation
Temporary works simulation — temporary strutting arrangement (TSA) installation and removal sequence modelled
Critical path visualisation — critical activities highlighted in the 4D simulation for programme risk awareness
Stakeholder review simulation exports — 4D animation video rendered for client, design team, and public communication
As-built sequence recording — 4D model updated against actual progress for forensic programme analysis

Key Deliverables

4D BIM model (Navisworks NWD) — 3D model fully linked to construction programme with TimeLiner tasks
4D animation video — construction sequence rendered as MP4 for stakeholder review and public communication
Programme task mapping schedule — listing all BIM objects linked to programme activities
Construction sequence report — written narrative of phased construction activities with 4D screenshots
Programme risk register — schedule conflicts and sequence clashes identified through 4D review
As-built 4D model update — model updated to reflect actual construction progress vs. planned sequence

Why This Matters

Visual Programme

Anyone can understand the construction sequence — not just engineers. 4D animation communicates the plan to clients, regulators, and the public without reading a Gantt chart.

Sequence Conflict Detection

Spatial clashes between concurrent construction activities found in the model — before they cause delays on site.

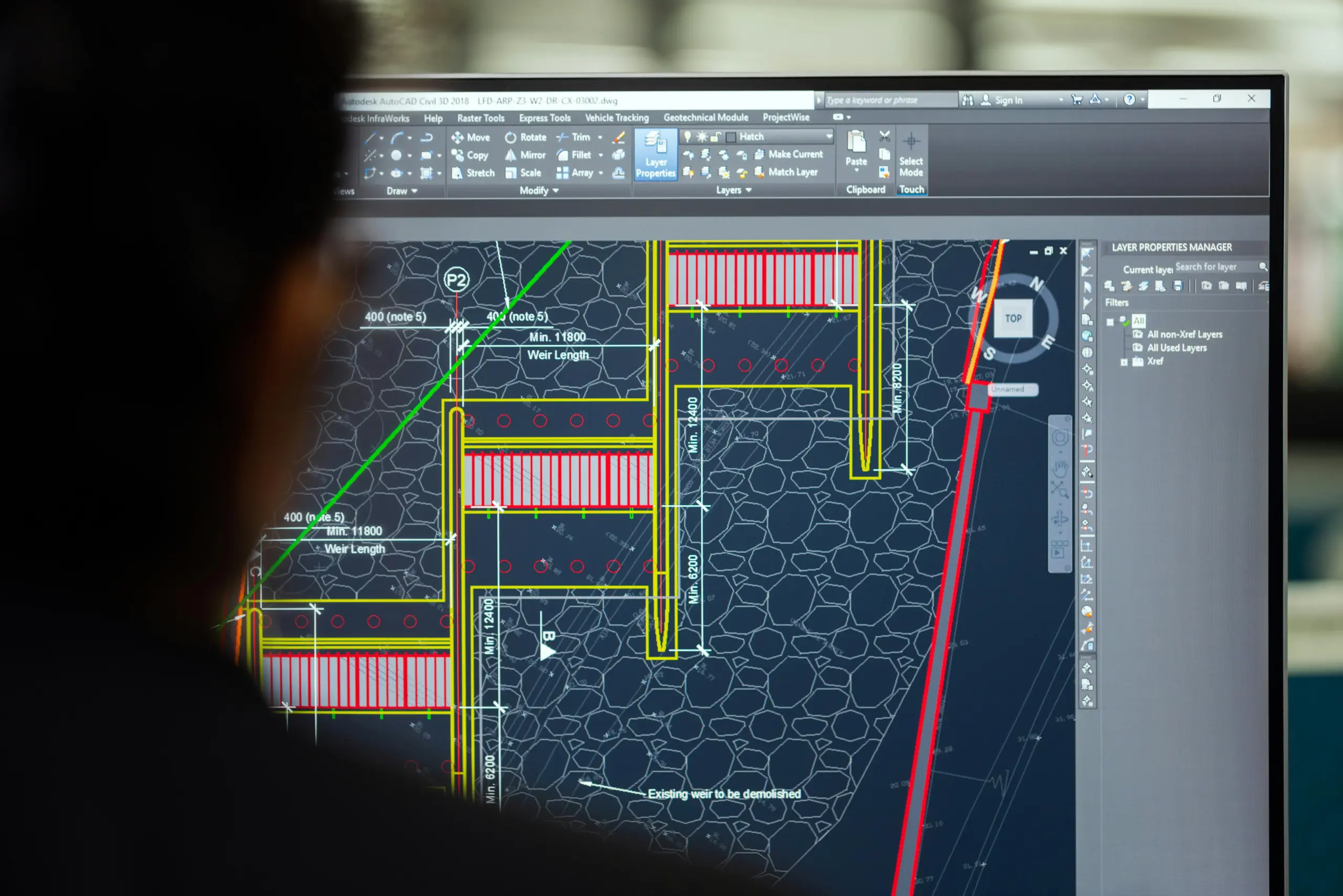

4D BIM construction sequencing model showing a detailed AutoCAD Civil 3D plan.
4D BIM construction sequence blueprint with a laptop.

TBM Drive Simulation

Full 1,438 m TBM drive animated ring by ring — allowing the team to review and optimise the tunnelling sequence before boring begins.

LTA BIM Compliant

4D BIM delivered to LTA BIM standards — ready for Design Review, construction methodology approval, and regulatory submissions.

Tools & Standards

4D Software
Autodesk Navisworks Manage — TimeLiner Module
BIM Authoring
Autodesk Revit (Civil + Structural Worksets)
Programme Import
Primavera P6 / Microsoft Project (MPP) Gantt integration
Animation Export
AVI / MP4 video export from Navisworks Animator
Standards
LTA BIM Standards, LTA TBM Tunnelling Specification, ISO 19650
Documentation
4D screenshots, sequence reports, programme mapping schedule
